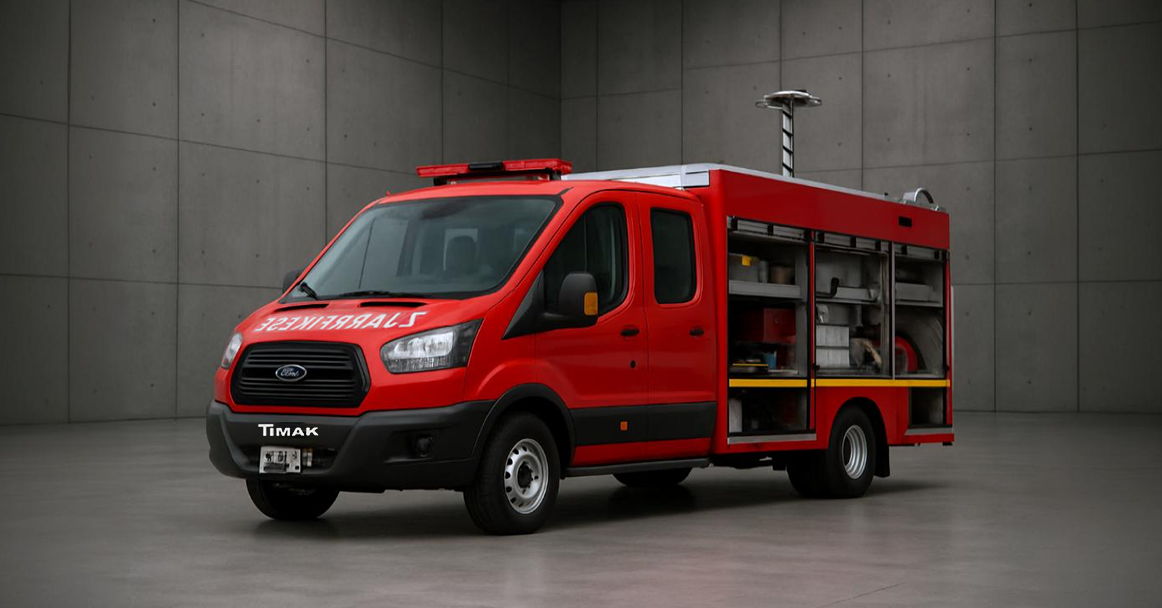

A vital part of any fire brigade, TIMAK’s Rescue Vehicles are built to perform under pressure. Featuring centrifugal pumps molded from high-strength aluminum alloy, they offer normal pressure up to 20 bar with delivery rates from 1,500 to 4,000 lpm, and high-pressure options up to 40 bar at 250 lpm. Integrated foam mixing systems and 360° monitors with jet and spray patterns ensure flexible response in any emergency.
Standard Specifications
Chassis: Min. 7,500 kg, 4×2

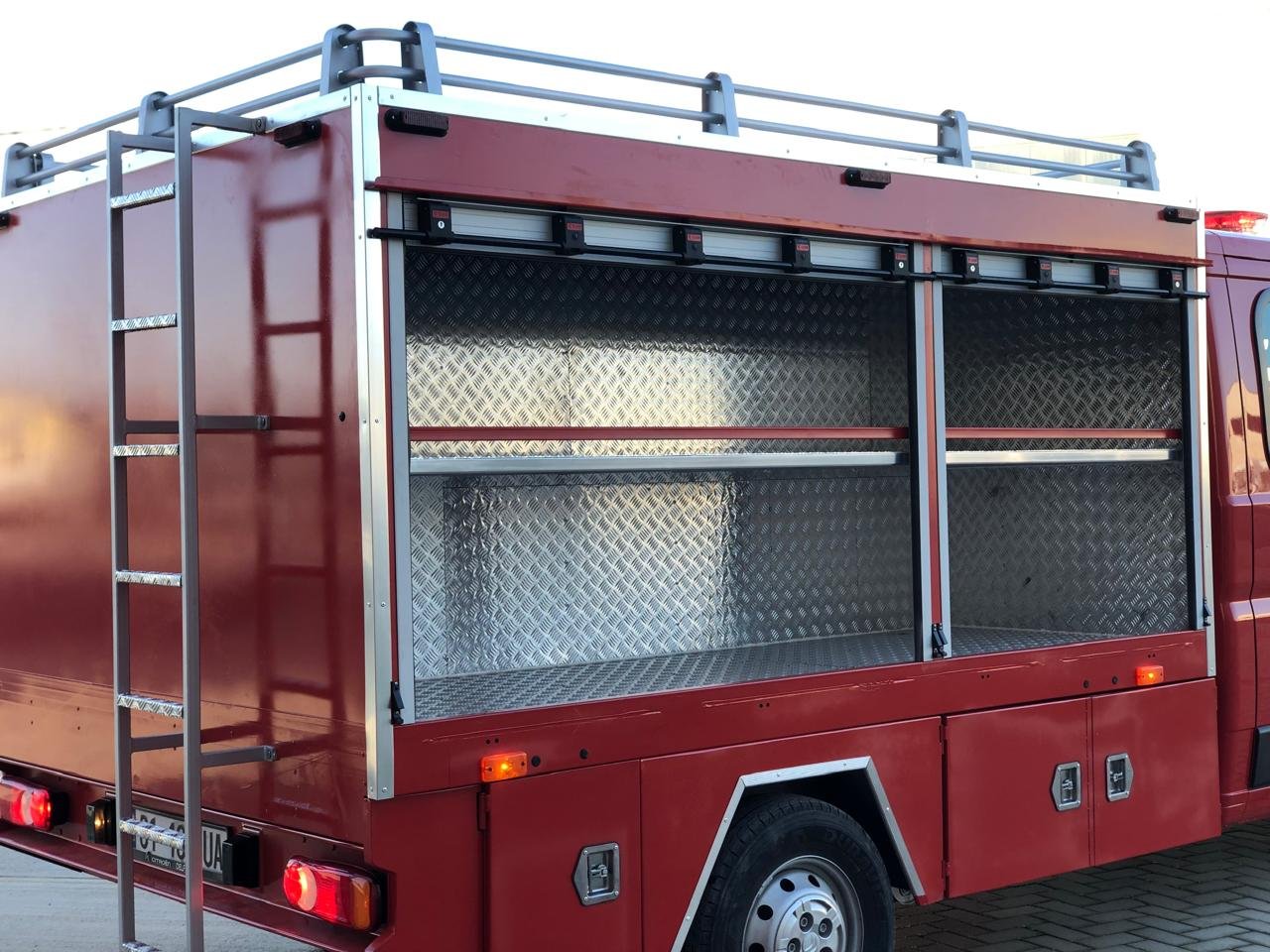

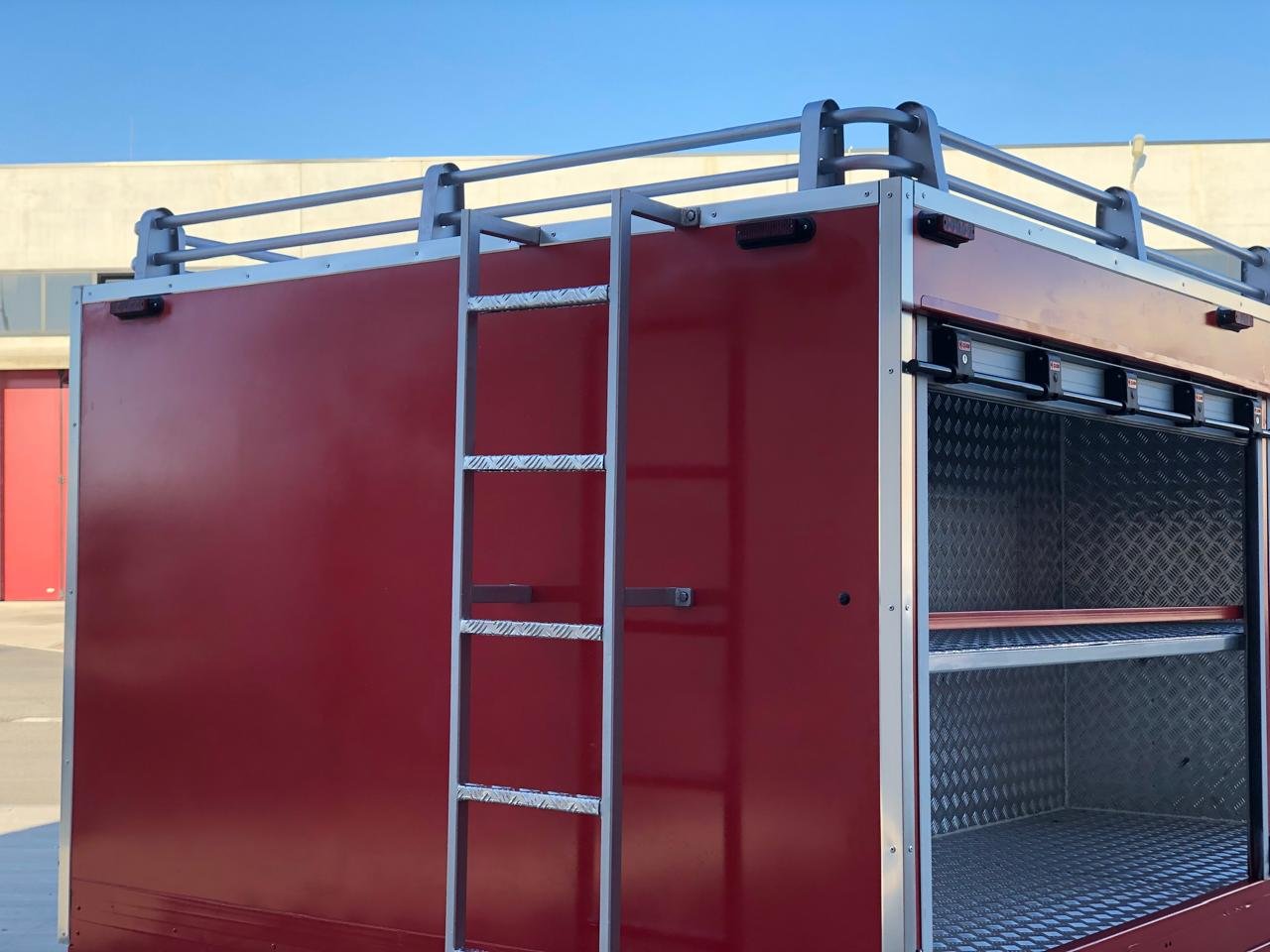

Bodywork: Modular / Monoblock / Aluminum panel
Water Tank: 2,000–3,000 L (stainless steel)
Foam Tank: 150 L (stainless steel)
Pump Options: TMK 1500 N – 1,500 L/min @ 10 bar · TMK 2000 N – 2,000 L/min @ 10 bar · TMK 3000 NH – 3,000 L/min @ 10 bar, 250 L/min @ 40 bar · PTO drive, foam ratio 3%–6%
Monitors: TMK 1200 (1,200 L/min) · TMK 1600 (1,600 L/min) · TMK 2400 (2,400 L/min), manual
Lighting & Warning: Lightbar with siren · Locker lighting · 2 fixed projectors
Hose Reel: 1″ x 50 m, manual unwind / electric rewind · Jet/Fog pistol nozzle
Standard Accessories: Suction strainer, suction hoses, branchpipes · Fire hoses (2″ and 2.5″) · Union wrenches · Telescopic light mast · Portable ladder · Front bumper winch
Optional Specifications
Telescopic projector
Additional hose reel
Remote-controlled monitor
Bumper turret
Dry chemical powder unit
Rescue and firefighting tools
Front watering bar
Under-vehicle cooling system
Foam nozzles
Ladder lowering system
