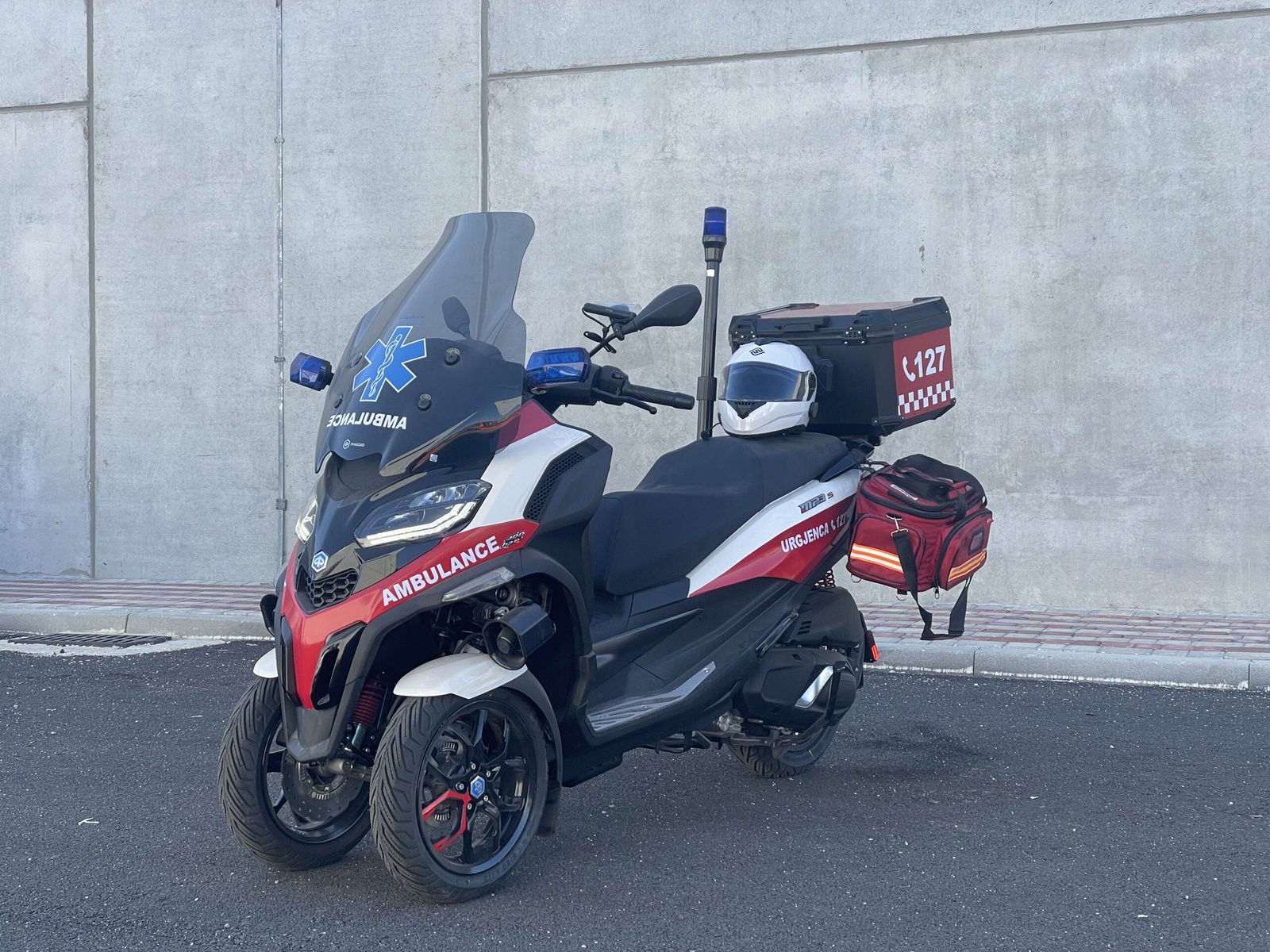

The Motor Ambulance is TIMAK’s compact and agile solution for traffic-congested cities and hard-to-reach locations. This first responder unit delivers emergency care within minutes, making it perfect for urban rescue, festivals, and crowded events. It supports fast intervention when every second counts.
Motorcycle Siren
Model: EXPERT-WM
Voltage: 12 VDC (10.5–15 VDC)
Siren Output Power: 80W RMS
Call Output Power: 40W RMS
Frequency Response: 300Hz–10,000Hz, max ±3dB
Siren Modes: Slow, Fast, Manual, Horn
Functions: Siren, Call, Light Warning Control (optional), Volume Control
Siren – Slow: 695 Hz – 1640 Hz in 12.5 h/min interval
Siren – Fast: 695 Hz – 1640 Hz in 173 h/min interval
Siren – Horn: 500 Hz / 750 Hz with 125 Hz shift
Motorcycle Speaker HP-1006
Model: HP-1006
Magnet: Neodymium (N35 or N42)
Impedance: 11 ohms (DC resistance max 6 ohms)
Front Warning Lights – miniBLINK (2 units)
Model: MiniBlink
Voltage: 12 VDC
Light Source: 6 LEDs (front cross) + 2 LEDs (forward)
Material: Polycarbonate (UV and impact-resistant)
LED Colors: White, Blue, Red, Green
Lens Colors: Transparent, Blue, Red, Green
Rear Warning Light – maxiBLINK
Model: MaxiBlink
Voltage: 12 VDC (10.5–15 VDC)
Light Source: 12 LEDs
Material: Polycarbonate (UV and impact-resistant)
LED Colors: White, Blue, Red, Green
Lens Colors: Transparent, Blue, Red, Green
Telescopic Warning Lights – pulse-T (2 units)
Model: Pulse T
Voltage: 12 VDC (10.5–15 VDC)
Light Source: 3 or 6 LEDs
Material: Polycarbonate (UV and impact-resistant)
LED Colors: White, Blue, Red, Green
Lens Colors: Transparent, Blue, Red, Green
Medical Equipment Standard
Vital signs diagnostic kit: Stethoscope, thermometer, glucometer, sphygmomanometer, pulse oximeter
Side bag: 1 large side bag with internal smaller pouches for medical sets
Monitor-defibrillator: Included
Cervical immobilization collars: 3 sizes
Oxygen cylinder: 2L
Motorcycle branding: Reflective, high-visibility colors, organizational logos, custom lettering and reflective markings
