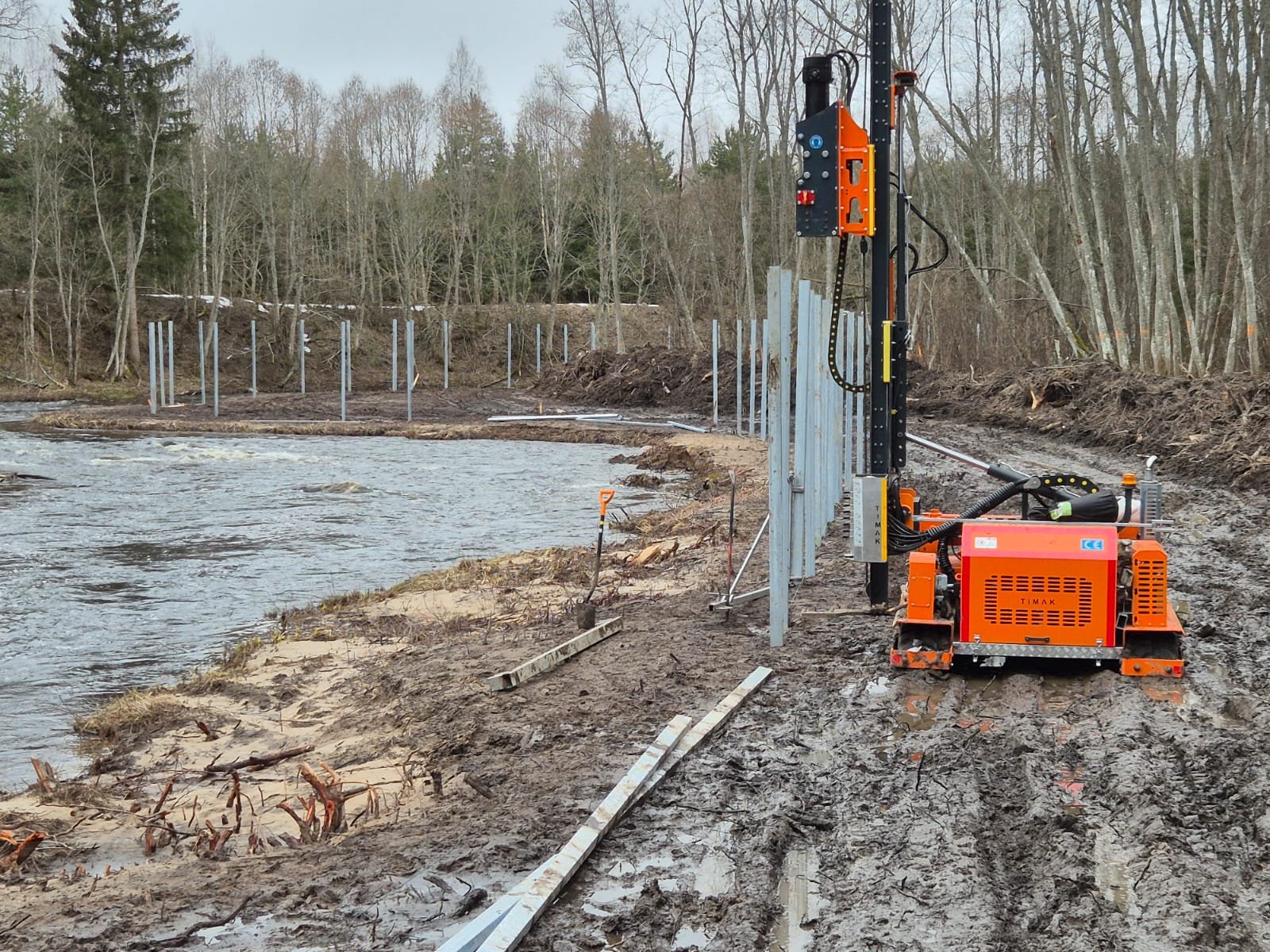

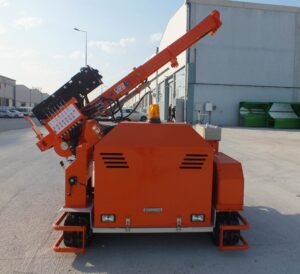

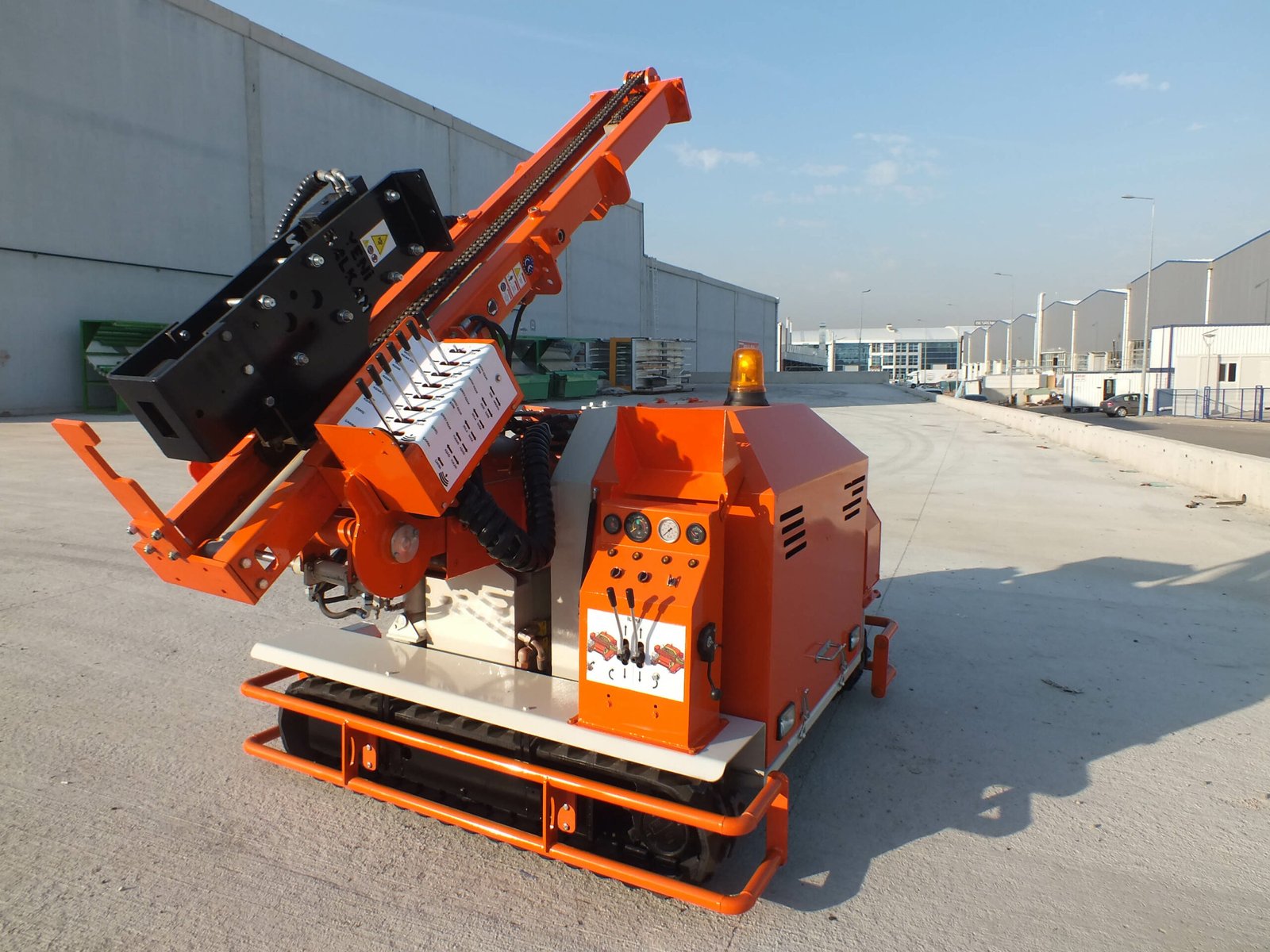

The Guardrail Pile Driver Machine by TIMAK is purpose-built for road safety infrastructure, delivering powerful and precise post-driving for highway guardrails and crash barriers. Mounted on a robust tracked or wheeled base, it offers exceptional stability, fast positioning, and high-performance impact energy, even in challenging environments. Ideal for road construction companies and infrastructure development projects.
Technical Features
Height: 3500–4200 mm
Engine: 34 kW DEUTZ diesel, air-cooled, 3-cylinder (45.6 HP @2800 rpm)
Tracks: Continuous rubber tracks for enhanced traction
Hammer Impact Energy: 850–1060 J
Hammer Frequency: 600–1140 bpm
Hydraulic Hammer: 300 kg, 840 J, 390–1000 bpm
Max Post Size: 160 × 120 mm, Height: up to 2.8 m
Machine Weight: 2.5–4 tons
Column Inclination: ±15° (transverse & longitudinal)
Column Leveling: Automatic hydraulic system
Track Pallets: Plastic (steel optional)
Fuel Tank: 80 L (with indicator)
Hydraulic Tank: 80 L (with indicator)
Cooling: Hydraulic oil heat exchanger
Controls: 9-level proportional joystick
Optional Equipment
Automatic Column Leveling
Kubota Diesel Engine: Liquid-cooled, 4 cylinders, 35.9 kW (48.1 HP) @2800 rpm
GPS Tracking System
Remote Control Unit
Auxiliary Hydraulic Coupling
LED Work Light Kit
Camera System with Monitor
Lockable Tool Storage Compartment
